CIM for grid operators: how a shared data model makes grid data usable

A power grid consists not only of lines and transformers, but of thousands of interconnected objects – and of just as many data relationships. CIM creates a shared language for this information. The standard only delivers its value, however, once profiles, mapping, data quality and processes work together.

A power grid is more than the sum of its equipment

At first glance, a power grid is easy to describe: power plants and distributed generators feed in energy, lines transport it across different voltage levels, transformers connect those levels and switches change the current state of the grid. Consumers draw electrical energy. In reality, however, what emerges from this is a highly interconnected technical system.

A line, for example, is not described by its length or impedance alone. For a power flow calculation it must be unambiguous which terminals connect it to which nodes, which voltage context it belongs to, which operating state it is in and which limits apply. The same is true for transformers, switchgear, busbars, generators, loads and substations.

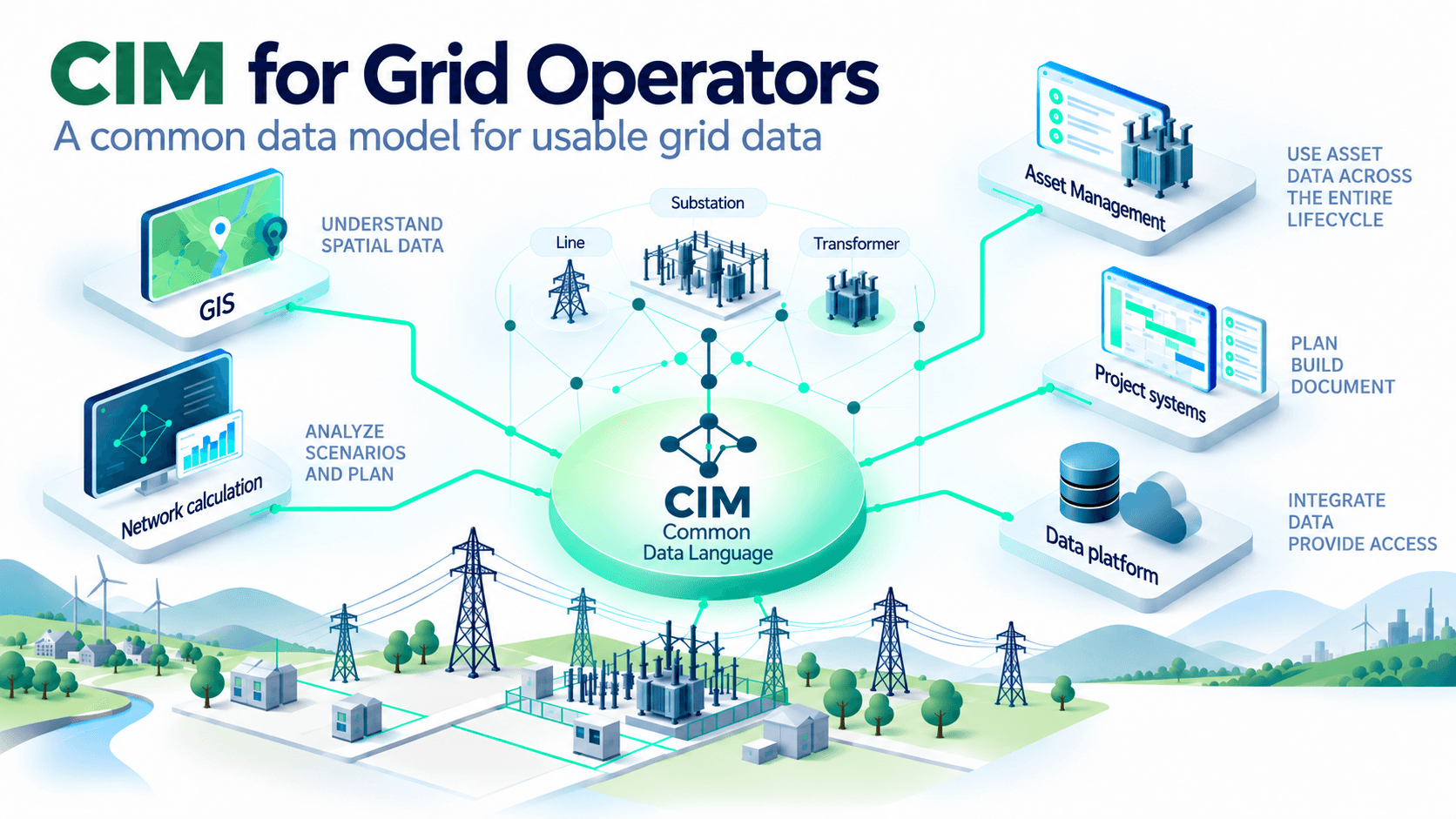

Digitally, this grid world is represented in many systems: in network calculation software, GIS, asset management and maintenance systems, operations management, project and planning solutions as well as data platforms. Every system looks at the same grid from a different professional perspective and often uses its own data model, its own naming and its own identifiers.

What is the Common Information Model?

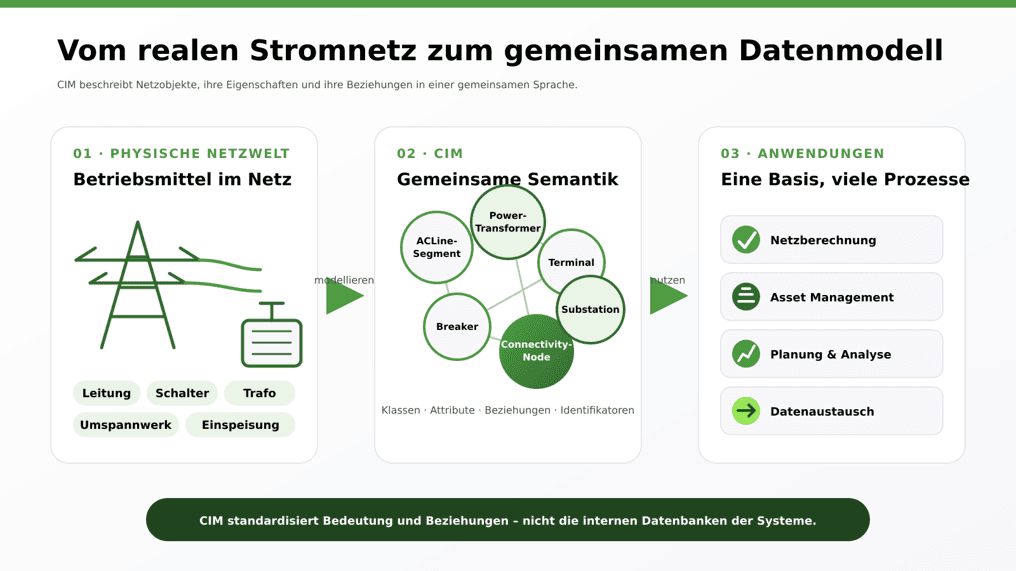

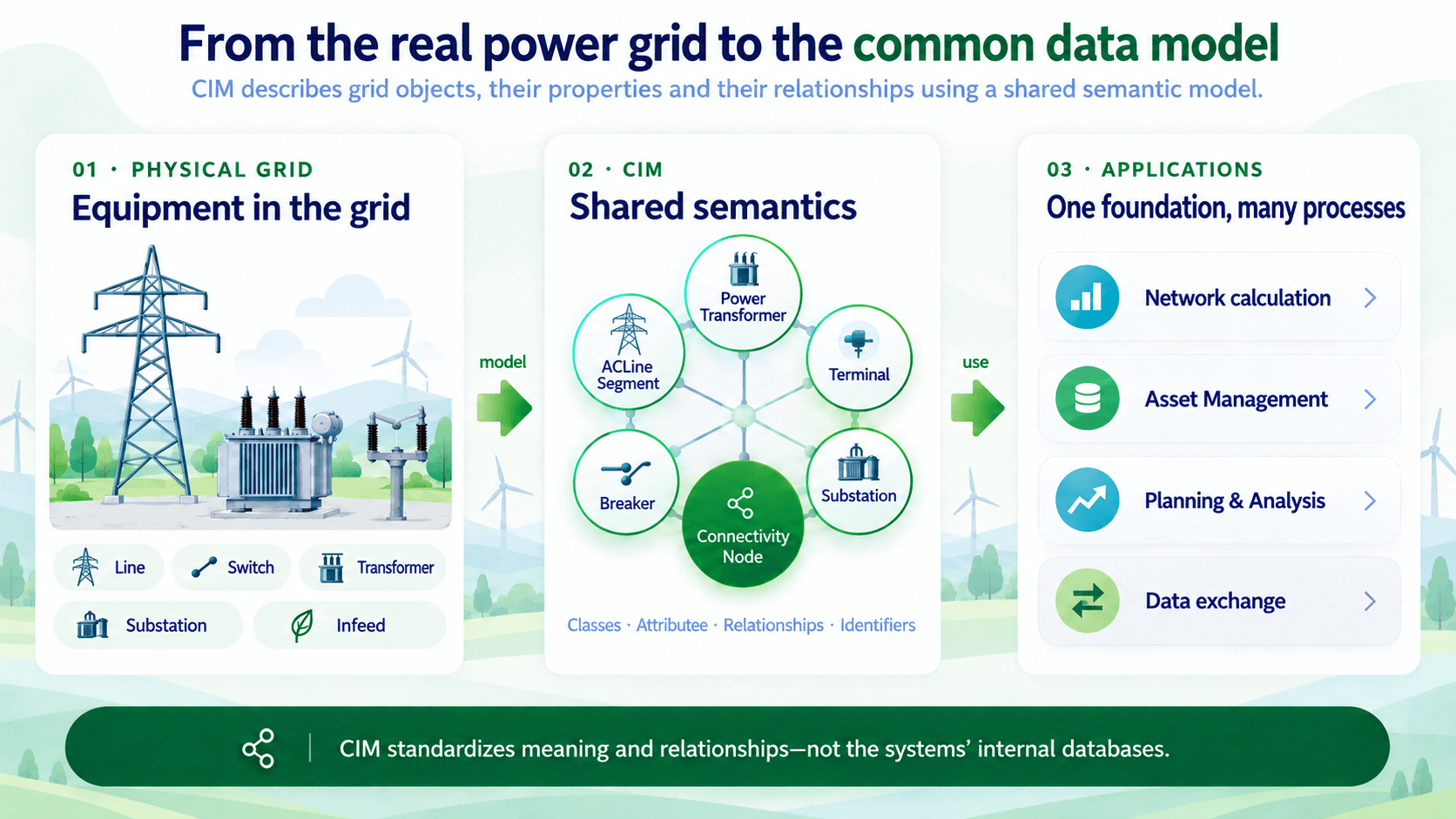

The Common Information Model, or CIM for short, is an internationally standardised, abstract information model for the energy industry. It describes the essential objects of a utility as classes with attributes and relationships. The foundations for grid models are laid out in particular in the IEC 61970 series of standards; IEC 61968 extends the model mainly for distribution grids and the integration of operational enterprise systems.

Put simply, CIM creates a shared technical language. An ACLineSegment, a PowerTransformer, a Breaker or a Terminal therefore no longer acquires a new, project-specific meaning in every interface. Systems can keep their internal models and still exchange information based on shared semantics.

That is an important distinction: CIM is not primarily a database, nor is it merely a file format. It is a shared model of the domain. Only on that basis are application-specific subsets, technical exchange formats and quality rules defined.

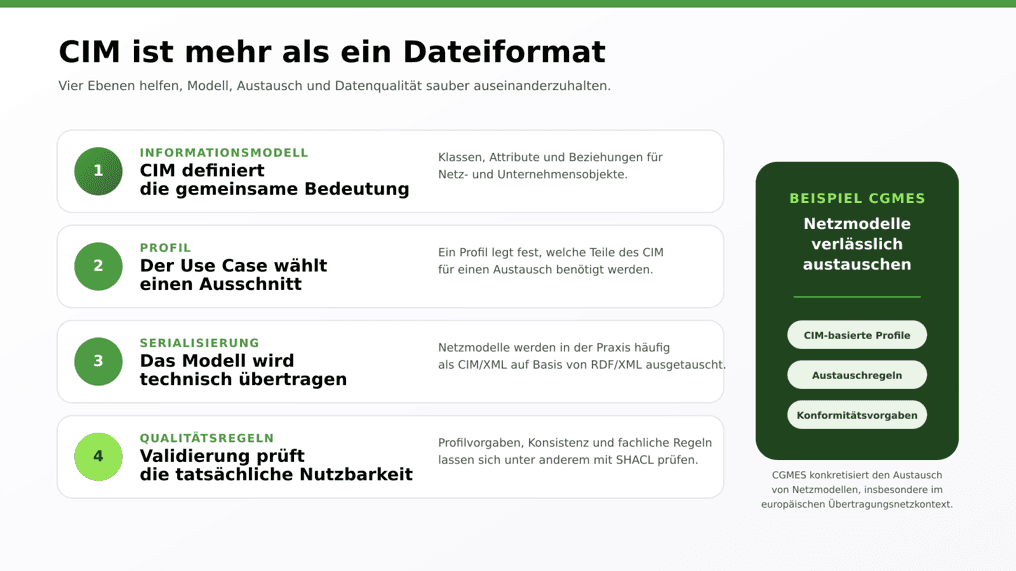

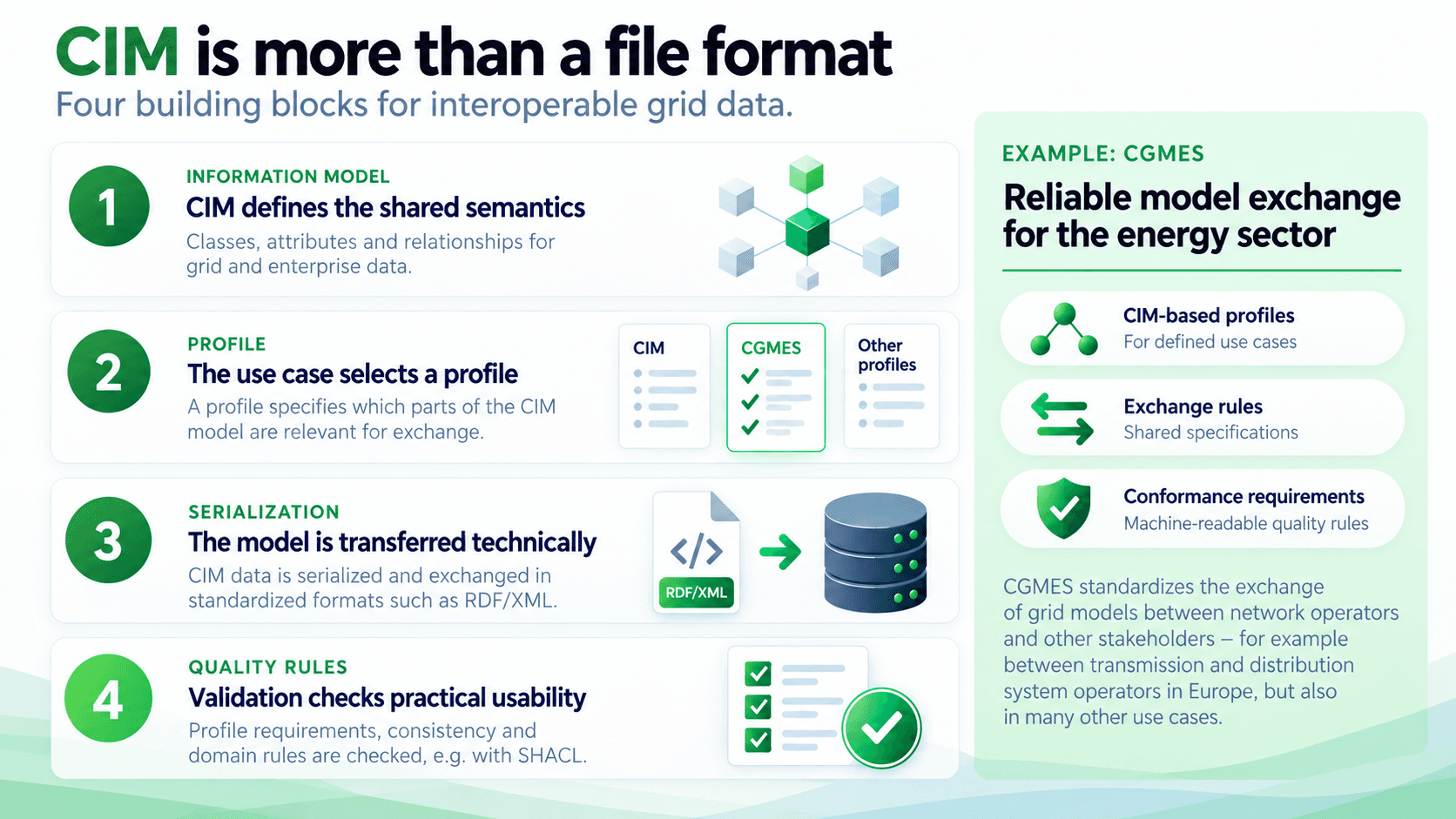

CIM, profile, CIM/XML, CGMES and SHACL: how the terms relate

In projects these terms are frequently mixed up. For a robust architecture, a clear separation pays off:

• CIM defines the shared semantics: classes, attributes and relationships for grid and enterprise objects.
• A CIM profile selects the parts of the overall model required for a specific use case and specifies how they are used. Not every data exchange needs the complete CIM.
• CIM/XML denotes an exchange format for CIM-based models that is widely used in practice. It serialises the data on the basis of RDF/XML so that it can be transferred between applications.
• CGMES stands for Common Grid Model Exchange Standard and makes CIM concrete through profiles, rules and conformity requirements for the exchange of grid models, particularly in the European transmission context. The current documents are published in the ENTSO-E CGMES Library and have been transferred into the IEC 61970-600 series.
• SHACL is a W3C standard for describing and checking constraints in RDF graphs. A shapes graph holds the rules against which a data graph is validated. SHACL is not CIM itself, but it is very well suited to expressing structural and domain rules for CIM data in machine-readable form. The specification is published by the W3C.

What does CIM actually deliver for grid operators?

1. Shared meaning across system boundaries

Without a shared information model, every new system coupling produces its own individual translations. A has to be mapped to B, B to C and later C back to A. With CIM, a canonical integration and exchange model can emerge onto which different source and target systems are mapped. This reduces the number of project-specific point-to-point interfaces and makes data easier to reuse.

2. More interoperability, less vendor lock-in

CIM supports exchange between applications from different vendors. This generally makes system replacements, the connection of new analysis tools and collaboration with partners easier.

Interoperability does not automatically mean plug and play, however. Profile, version, namespaces, identifiers, mapping rules and domain conventions still have to match. CIM reduces integration effort – it does not make it disappear without design work.

3. Data quality becomes testable

When data exists only in proprietary structures, quality rules often remain implicit: they live in the knowledge of individuals, in import scripts, or only become visible when a downstream application fails. A standardised model makes requirements more explicit.

It becomes possible, for example, to check whether mandatory attributes are present, whether data types and value ranges are correct, whether references resolve, whether cardinalities are respected or whether the topology is consistent in domain terms. Errors thus become visible earlier in the process – ideally before network calculation, planning or data exchange are affected.

4. End-to-end processes instead of isolated data islands

A shared data basis makes it easier to use information from network calculation, GIS, asset management and project systems in end-to-end processes. This matters for grid analysis, strategic target grid planning, operational planning, asset management and regulatory data exchange.

CIM can therefore also form an important foundation for a digital twin of the grid. The standard alone does not create a digital twin, though. Data sources, temporal states, responsibilities and concrete use cases have to be organised in addition.

5. Extensibility for company-specific requirements

No standard can fully anticipate every particularity of a grid operator. CIM is therefore extensible. Company-specific attributes and classes can be added, provided that extensions are documented, versioned and aligned with their exchange context in a controlled way. The art lies in using the standard as far as possible and extending it only where there is a clear professional need.

Where are the biggest challenges?

The breadth of the standard

CIM covers a large domain and is continuously developed further. Anyone who tries to introduce the complete model at once quickly creates unnecessary complexity. A use-case-driven start with a clearly defined profile and a manageable process chain is more successful.

Different versions and profiles

Two systems can both "support CIM" and still not be immediately compatible. Different CIM versions, profiles, CGMES versions, serialisation variants or interpretations of individual modelling rules lead to deviations. These differences have to be managed and tested deliberately.

Mapping from existing data models

Source systems have grown over years. Naming, object granularity and relationships do not always map one to one onto CIM. Before the technical transformation, it therefore has to be clarified in domain terms which source is authoritative for which information, how identifiers are preserved and what happens in case of ambiguity or missing values.

Formal validity is not yet professional usability

An XML file can be syntactically correct and still be unusable for a network calculation. Conversely, a model can largely satisfy a profile but violate a company-specific planning rule. Meaningful validation therefore works on several levels:

1. Syntax and serialisation
2. Conformity to schema, profile and version
3. Referential and structural consistency
4. Domain rules and plausibility
5. Fitness for the specific target process

Governance and responsibilities

A shared model needs shared rules. These include owners for profiles and extensions, approval processes for changes, versioning, documentation and a clear understanding of data ownership. Without this governance, new variants of the same standard emerge over time – and with them new silos.

Large models need suitable tooling

CIM files are hard for people to read directly. With large grid models, manual searching in XML editors becomes slow and error-prone. Practical tools therefore have to present relationships comprehensibly, allow targeted navigation, link validation results to the affected object and process large volumes of data with good performance.

A typical case from practice: the error only shows up in the target system

A grid model is exported from a network data management system and imported into network calculation software. The import initially completes, but the subsequent calculation aborts. The target system's error message is terse and does not point unambiguously to the cause.

Now the manual search begins: files are opened in an XML editor, identifiers are traced and relationships between objects are laboriously reconstructed. This often requires knowledge from several departments. Even after the correction, the question remains whether further errors of the same kind exist.

An upstream CIM workflow changes this sequence:

1. The model is validated automatically before it is handed over.
2. A finding points to the rule, object, attribute and affected context.
3. Domain users navigate from the error to the connected CIM objects.
4. The faulty data entry is edited in a controlled way.
5. Validation is run again and the corrected model is handed over.

This turns reactive troubleshooting into a reproducible quality process. At the same time, rules formulated once can be applied again to every subsequent data release.

How does a CIM rollout succeed?

1. Start with a concrete use case

Not "we are introducing CIM", but for example: "we want to validate grid models from system A automatically and hand them over to system B." A clear use case defines the required objects, quality requirements, timeliness and success criteria.

2. Record data sources and responsibilities

For every relevant attribute it should be known which system it comes from, who owns it professionally and how it is identified and updated. Only then can a robust mapping be built.

3. Define profile, version and extensions

The target architecture has to document unambiguously which CIM and, where applicable, CGMES version is used, which profiles apply and where controlled extensions are necessary.

4. Design validation in from the start

Validation rules should not be created shortly before go-live. They are an executable part of the professional specification and already help during mapping, migration and interface testing.

5. Pilot with representative data

A pilot data set should not contain only an ideal excerpt. It has to cover typical special cases, incomplete data and relevant orders of magnitude. Only then does it become clear whether mapping, performance and error handling work in day-to-day operation.

6. Operationalise the process

After the pilot, rules, profiles, conversions and responsibilities have to be transferred into a repeatable operational process. This includes monitoring, approvals, versioning and the handling of new model releases.

How the enervance CIM Suite helps

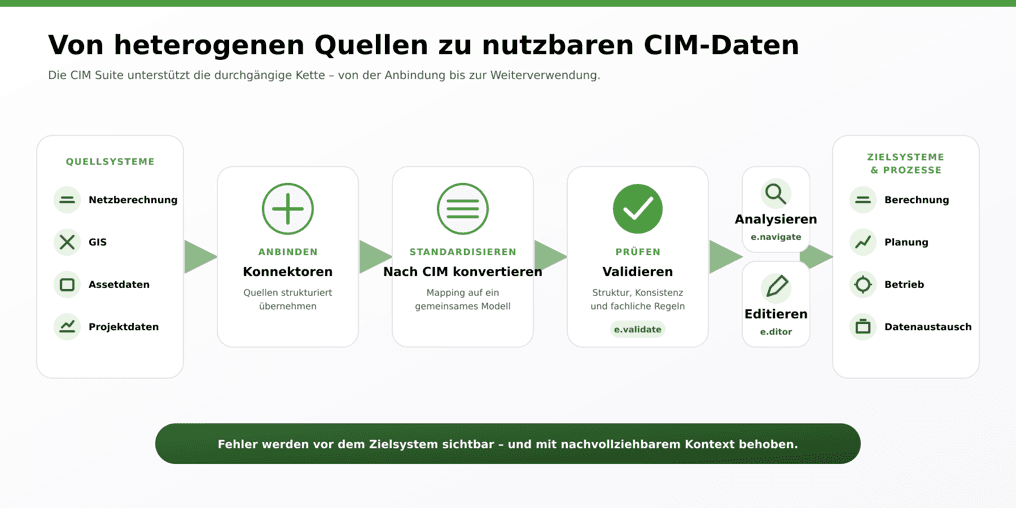

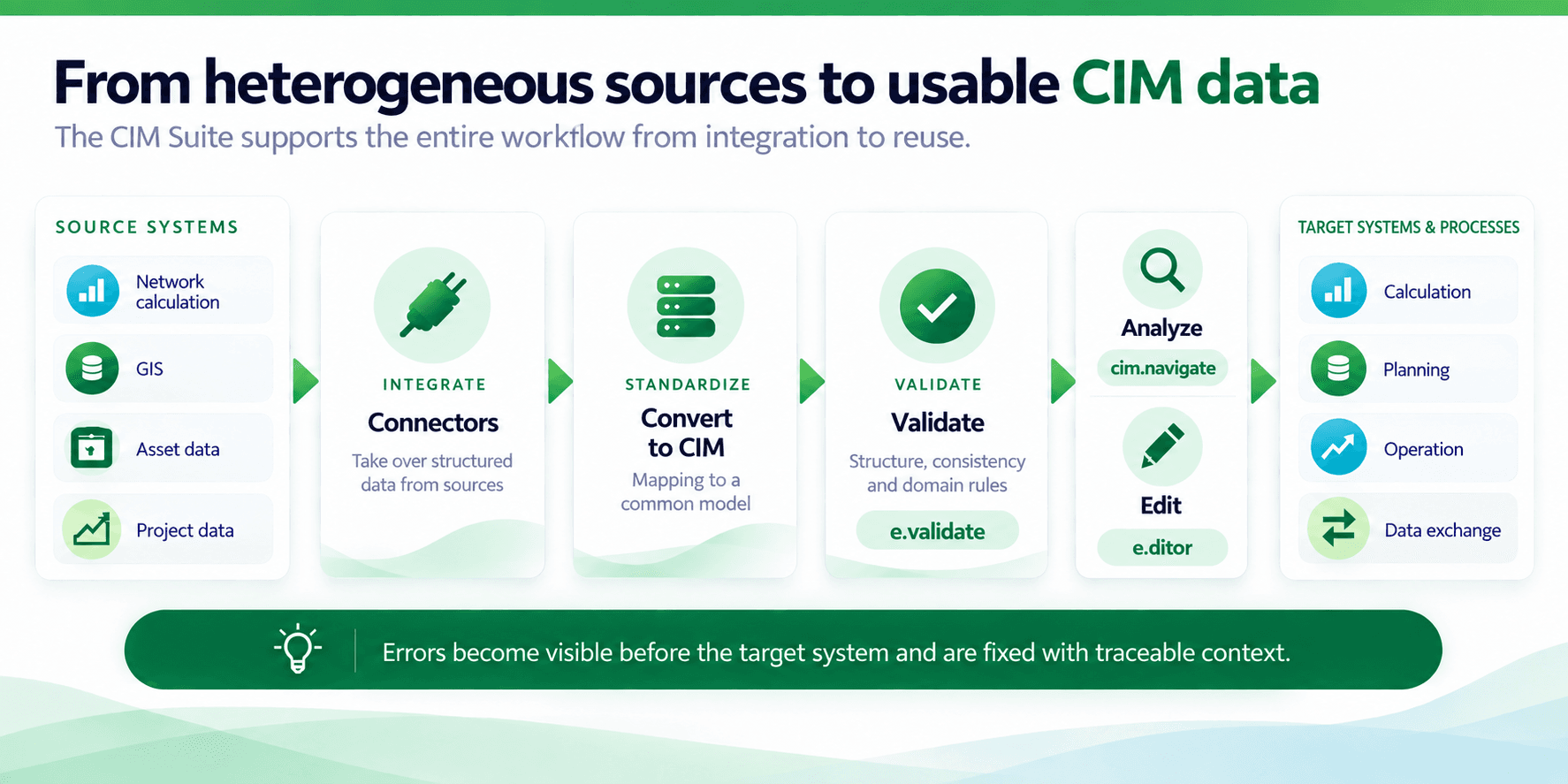

The enervance CIM Suite addresses exactly the gap between the standard and daily work. It supports grid operators in transferring heterogeneous data into a shared CIM model, checking its quality and making the models usable for further processes. The tool chain comprises:

• Connectors to source systems: grid, project and asset data from existing applications is connected in a structured way.
• Conversion to CIM: heterogeneous data models are mapped onto a standardised CIM basis. Company-specific extensions can be taken into account in a controlled manner.

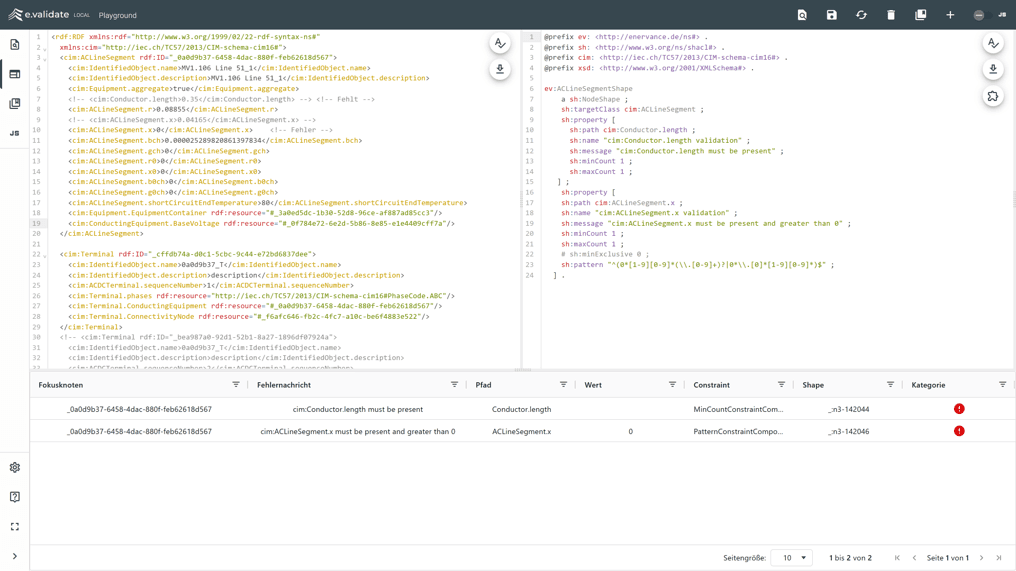

• Validation with e.validate: models are checked structurally and in terms of content. SHACL rules make requirements executable and deliver traceable validation findings.
• Analysis and navigation with e.navigate: classes, attributes, relationships and anomalies can be examined in a targeted way even in large models.
• Editing with e.ditor: faulty data or data to be completed can be edited in a modern web interface at data level and – depending on the use case – geographically and schematically.
• Downstream use: the validated data is available for network calculation, planning, analysis, exchange and further target applications.

The CIM Suite does not replace a professional CIM strategy. It makes its rules practically applicable. Together with CIM consulting, this creates a robust link between target picture, mapping, profiles, validation rules and operational software support.

Conclusion: the standard is the foundation – the process creates the value

CIM cannot dissolve data silos on its own. What the standard does deliver is decisive, however: a shared, system-independent meaning for complex grid data. This makes integrations more reusable, quality rules automatable and data more easily accessible for further applications.

The greatest benefit arises when grid operators treat CIM not as a one-off interface format but as part of an end-to-end data strategy. That includes a clear use case, suitable profiles, clean mapping, multi-level validation, controlled extensions and reliable governance.
